. Instructions pour l'installation de systèmes de plomberie moderne. fin du nickel sur le pipeextending drain en T en haut du sol. Serrer les écrous de raccord à trois upthe le tuyau de trop-plein, le tuyau de la crépine et le tuyau dans le sol.Puis fixer les tuyaux d'alimentation à l'faucetswith les écrous, et la baignoire est terminée. L'installation de la cuve à lessive notre description est pour la baignoire dans InstallationNo. 1, à la page 3. Les principes de l'thisinstallation sont corrects pour une cuve à lessive. La première chose à faire est de visser le tubtrap dans le raccord en t de drainage que nous assumehas déjà été installé pour prendre careo

• Contributeur: The Reading Room
• ID de l’image: 2AG5XDK
• Taille du fichier: 7,1 MB (204,3 KB Téléchargement compressé)
• Autorisations: Modèle - non | Propriété - non
• Dimensions: 1756 x 1423 px | 29,7 x 24,1 cm | 11,7 x 9,5 inches | 150dpi

Informations supplémentaires

Cette image appartient au domaine public, ce qui signifie que le droit d’auteur a expiré ou que le titulaire du droit d’auteur a renoncé à ses droits. Les frais facturés par Alamy couvrent l’accès à la copie haute résolution de l’image.

Cette image peut avoir des imperfections car il s’agit d’une image historique ou de reportage.

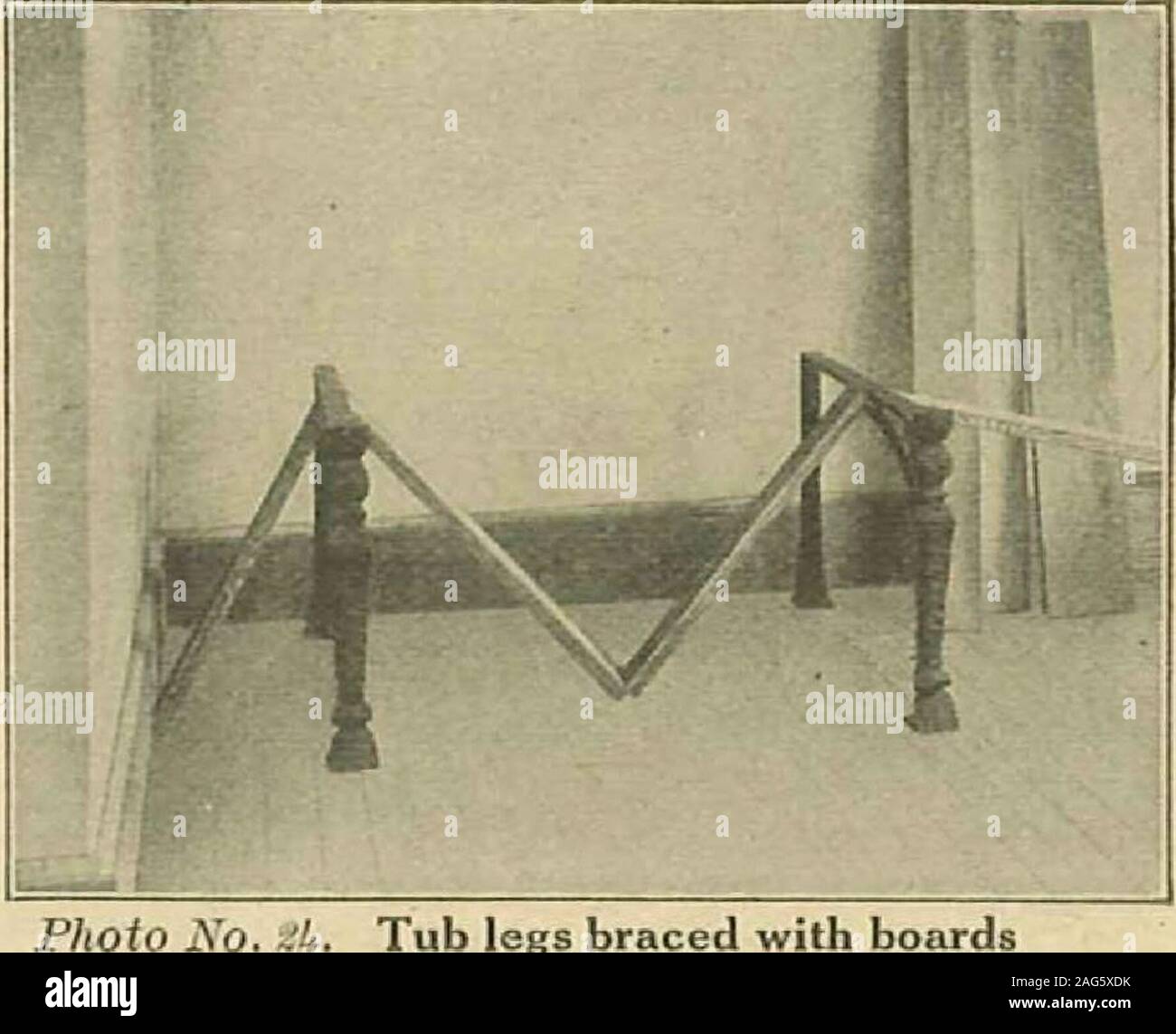

. Instructions for installing modern plumbing systems. end ofthe nickel plated tee over the drain pipeextending up from the floor. Tighten upthe three coupling nuts to the overflow pipe, the strainer pipe and the pipe in the floor.Then attach the supply pipes to the faucetswith the union nuts, and the tub is complete. Installing the Laundry Tub Our description is for the tub in InstallationNo. 1, on page 3. The principles of thisinstallation are correct for any laundry tub. The first thing to do is to screw the tubtrap into the drainage tee that we assumehas already been installed to take careof the tub drainage. The legs of the tubare then braced, as shown in Photo No.24, so that they will not topple over whenthe tub is placed upon them. The legs of thetub should not be at the extreme ends, buteach leg should be about 4 inches from theend of the tub. If there is a wood floor, the legs can be screwed to the floor, butthis is not absolutely necessary, as the trapand supply pipes, together with the legs, will hold the tub in a rigid position.. Tub legs braced with boards Next attach the faucets to the tubs. Itis easiest to do this with the tub standing onend. When handling, be careful not to strikethe projection on the bottom to which thetrap is to be bolted. This can easily bebroken off by careless handling. The holes for the faucets are not drilledall the way through when the tub is ship-ped, because some customers prefer to runthe hot and cold water pipes above the topof the tub, making the faucet holes unneces-sary. If you wish the faucets to comethrough the back of the tub the uncut partof the faucet holes is very easily removedwith a cold chisel and hammer, as shownin Photo No. 25. When making the open-ings, be careful to use a narrow chisel andto strike it lightly. Otherwise, you maycrack the granite facing around the holes. Now place the tub upon its legs carefully, being sure not to strike the waste pro-jection on the bottom, and slip the wasteprojection into the
